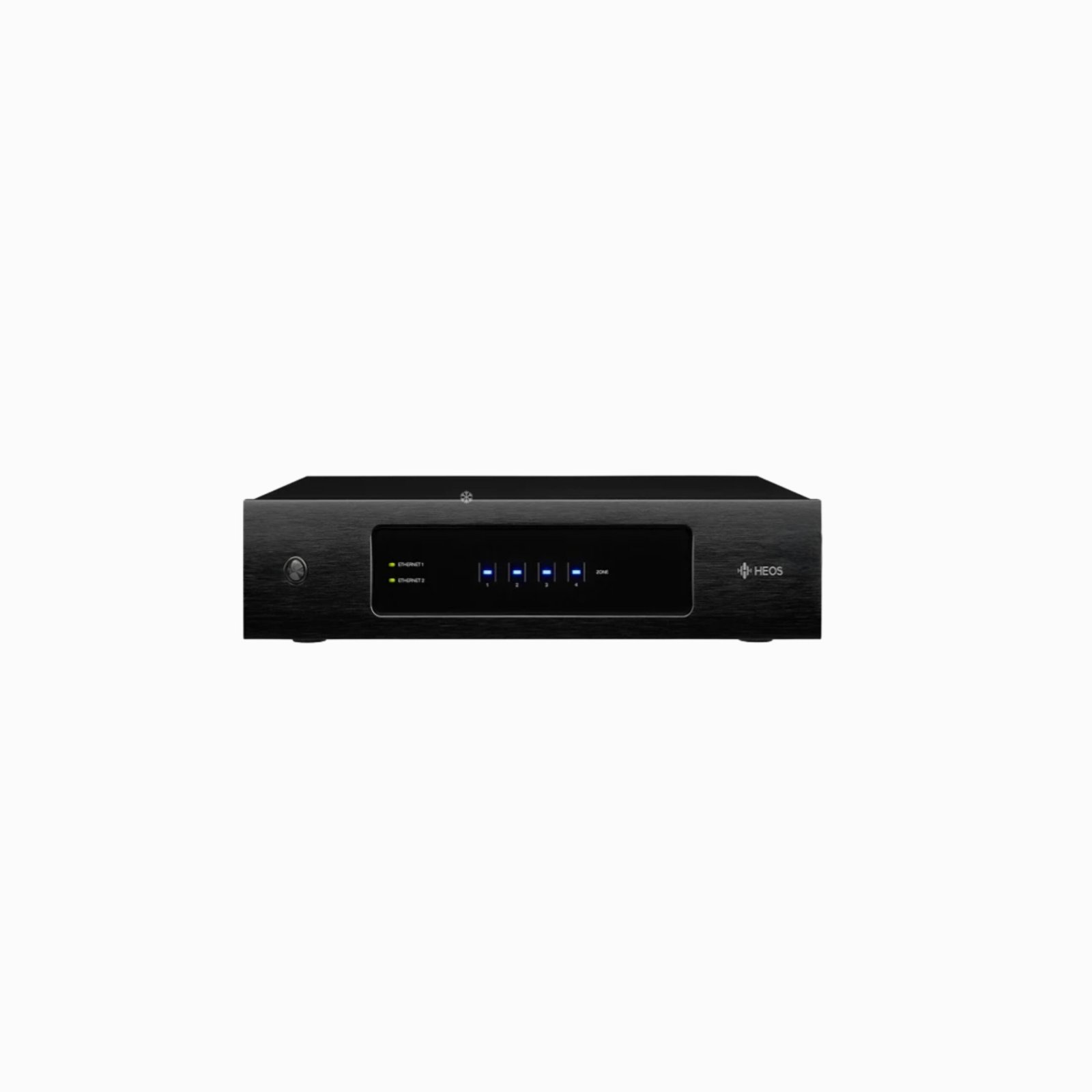

Denon HEOS DRIVE HS2- Multi-Room Audio Amplifier

Whole home multi-zone audio in a single chassis.

NEW UPGRADED HS2 VERSION

Designed by custom integration specialists for custom integration professionals, HEOS Drive is a unique 4-zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.
Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive features low impedance drive capability (4 ohms).

Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs, and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.

Equipped to handle virtually any combination of speaker configurations, HEOS Drive features built-in DSP high pass/low pass filters – set any output to full range, subwoofer, or satellite speaker modes, with adjustable crossover points.

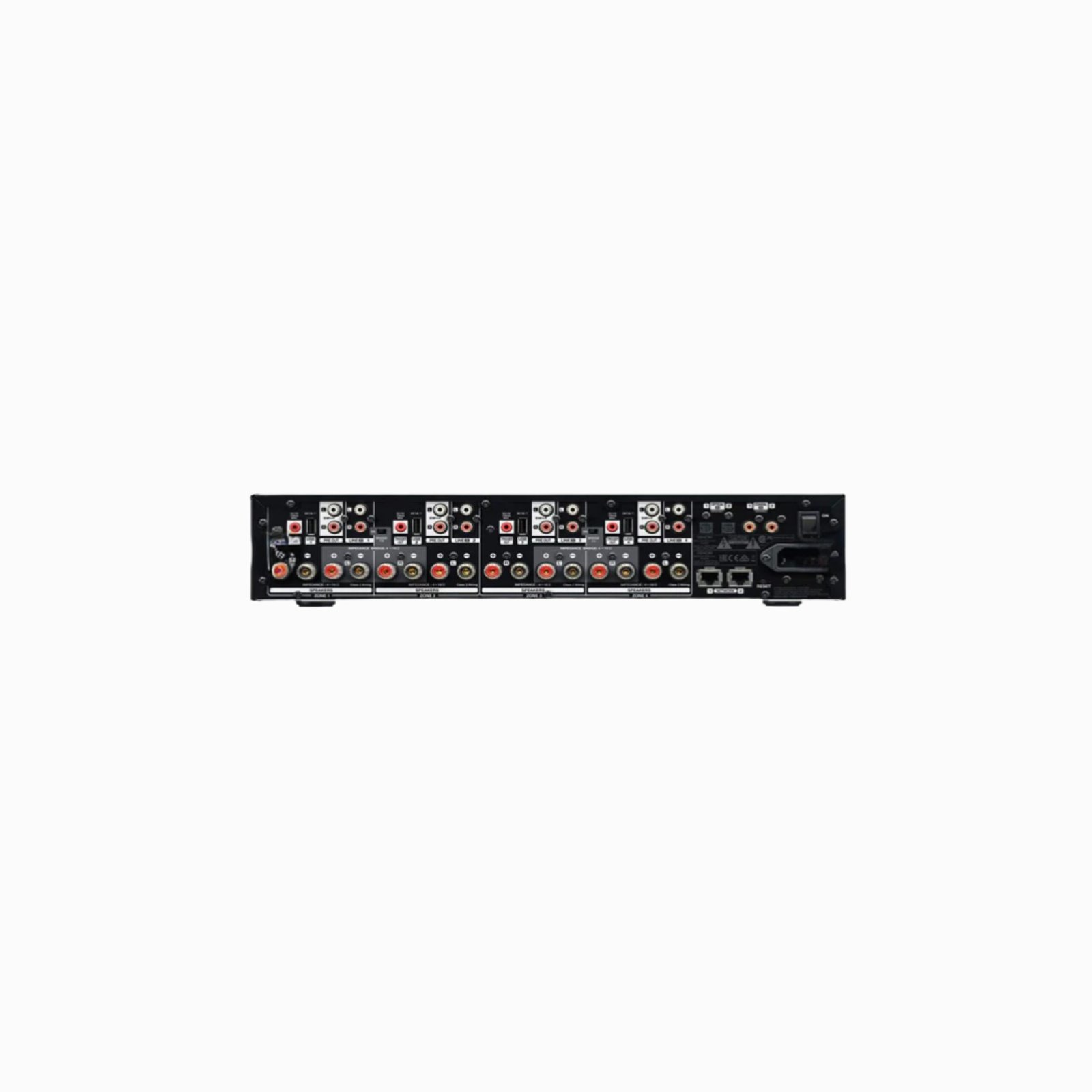

The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long-term stability and operational reliability.

Power Supply100-240 Volts AC / 50-60 Hz auto-switching What’s In The BoxHEOS Drive HS2 / AC power cord x 4 / Ethernet Cable / Quick Start Guide / 2 rack ears Controls & IndicatorsPower/standby / Ethernet status 1/2 / Zones 124 active status Weight15.9 lbs / 7.2 kg Multiple Language SupportEnglish / French / Spanish Dimensions (H x W x D)88mm x 430mm x 402 mm (without rack ears) / 88mm x 483mm x 402 mm (with rack ears) Operating Temperature Range41dF-95dF / 5dC-35dC Product FinishBlack

SPECIFICATION
