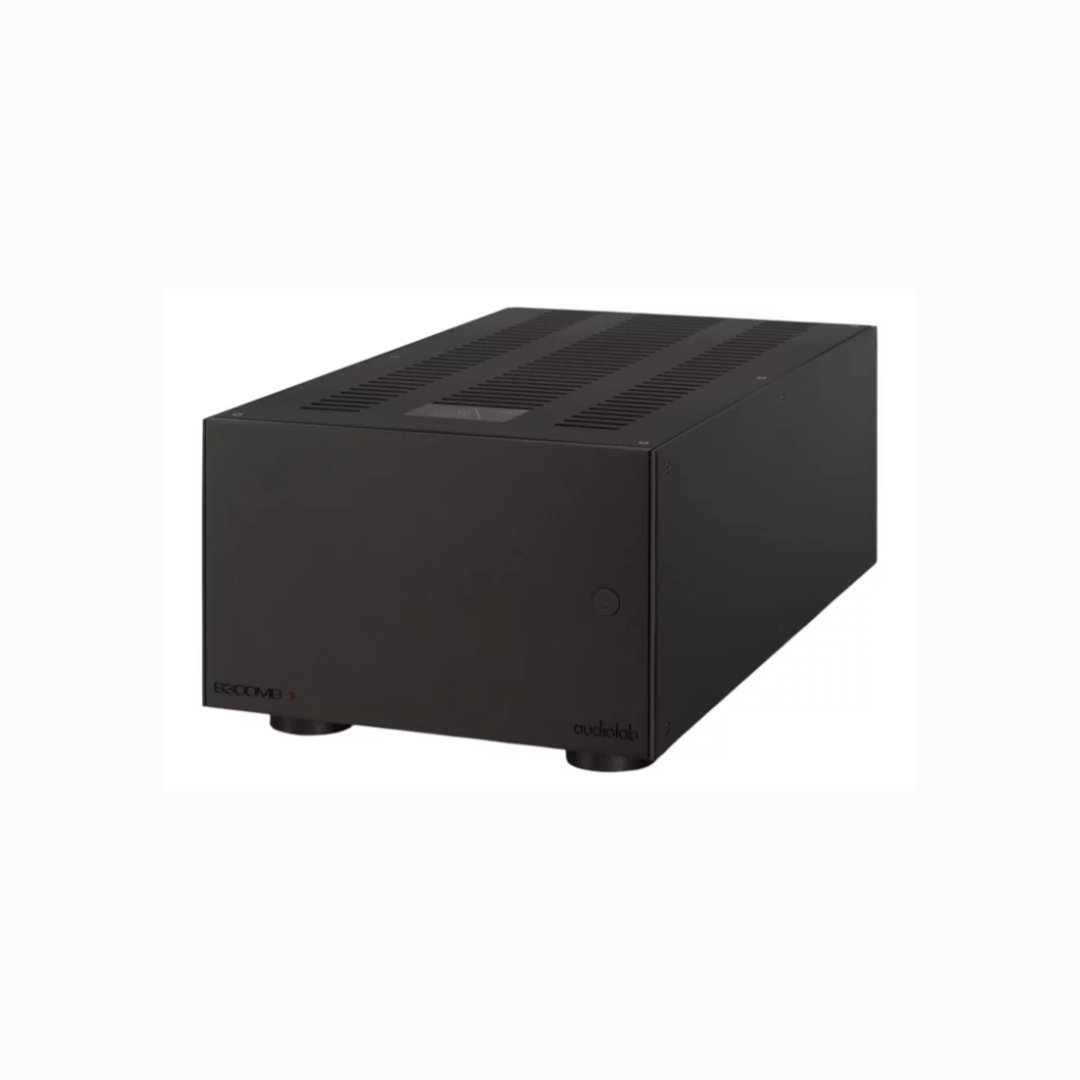

Audiolab 8300MB Power Amplifier (Mono Block)

Audiolab 8300MB Power Amplifier (Mono Block)

Specifications:
  • Power Output (8 Ohm):    140W (20Hz – 20kHz, 0.08%)
  • S/N Ratio: 105dB
  • Freq. Response (Analog In):    8Hz – 100kHz (+/- 3dB)
  • Number of Channels: 2
  • Transformer: Large Capacity EI
  • Inputs: Stereo RCA or XLR (Switchable, independent per channel)
  • Power Output: 140WPC (both channels, 20-20kHz)
  • THD: 0.08% Max
  • Bandwidth: 8Hz-100kHz (±3dB)
  • Dimensions HWD: 5″x17.375″x14″
  • Weight: 11 kgs

Description

Audiolab 8300MB Power Amplifier (Mono Block)

The 8300MB is a pocket powerhouse, housing 250W of pure, balanced amplification. 8300MB’s full power output is delivered into any loudspeaker load – unconditionally. Massive reserves of power are available for high current drive capability to power and control the mightiest of speakers. This latest development of the Audiolab range now features a fully balanced power stage, making the most of the balanced XLR inputs. This makes 8300MB a perfect match for any pre-amplifier.

The 8300MB is quite possibly the perfect example of Audiolab’s goal to reproduce music with exquisite detail effortlessly. Not only is 8300MB an extremely powerful amplifier, offering 250W of pure power with high current drive capability, but it also features a fully balanced power stage.

Internally, the 8300MB is arranged as two complete power amplifiers, which are bridge coupled to the loudspeaker terminals. Each power amplification stage is fed from one of the terminals of the balanced input; therefore, the 8300MB operates as a fully balanced amplifier right through to the speaker output.

The benefits are a high level of noise rejection and lower transient distortion, plus the ability of the amplifier to draw maximum current from the power supply as required to follow the musical waveform accurately.

It all adds up to a startlingly vivid and highly impactful musical performance that will put more energy into your loudspeakers as well as control them like never before.

Specifications of the Audiolab 8300MB Power Amplifier

Model 8300MB
Rated Power Output 250W RMS (8Ω)
350W RMS (4Ω)
Peak Power Output 450W RMS (4Ω)
Gain 29dB
Inputs XLR, RCA
Outputs Speaker
Input Sensitivity 1500mV
Input Impedance 44KΩ (balanced)
22KΩ (unbalanced)
Power Bandwidth 5Hz – 60kHz
Frequency Response 20Hz ~20kHz -0.3dB, ref. 1kHz
Total Harmonic Distortion (THD) 0.00%
Intermodulation Distortion (IM) 0.03%
Transient Intermodulation Distortion (TID) 0.03%
Signal-to-Noise Ratio (S/N) 110dB
Damping Factor 200
Dimensions 216 x 150 x 379mm
Net Weight 9.5kg
Standard Accessories Power Cord, User Manual
